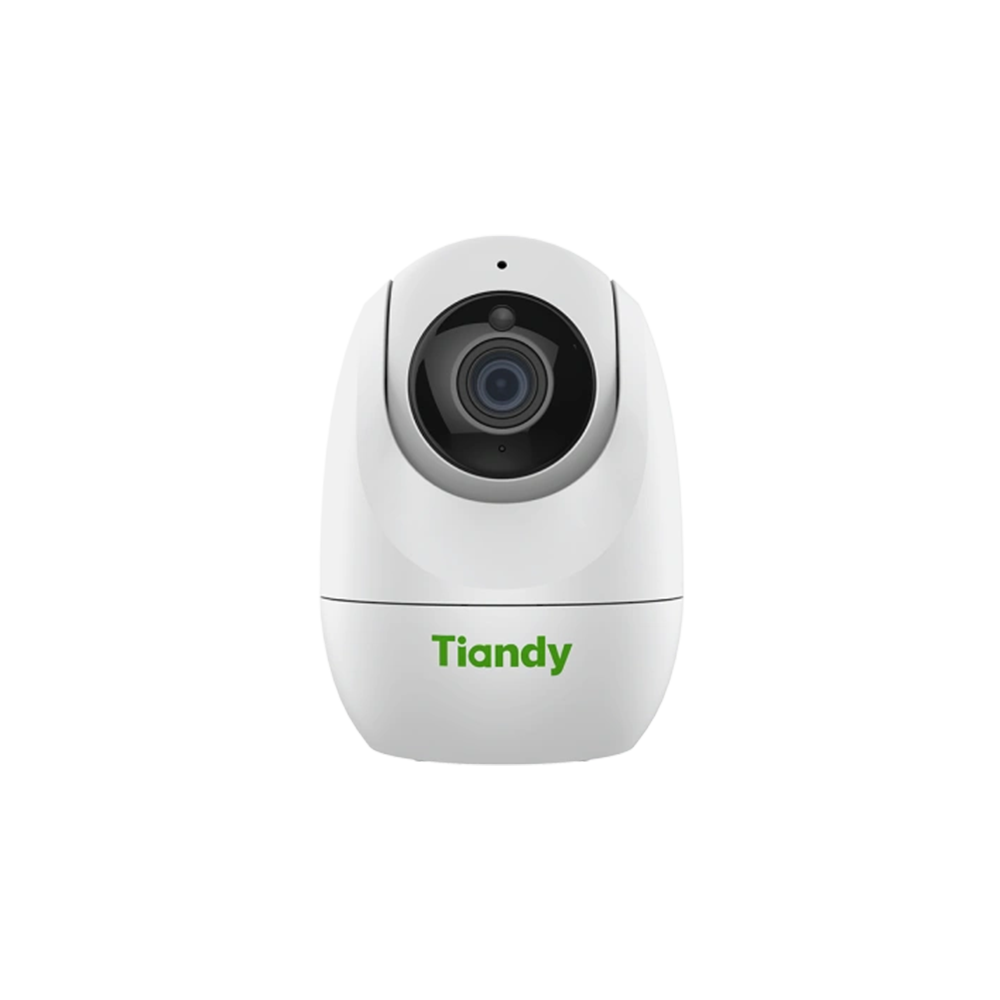

4MP Fixed Color Maker Wi-Fi PT Camera TC-H342N 9DA-4
TC-H342N 9DA-4
Përshkrim
Kamerë IP Wi-Fi PTZ 4MP me lente fikse 4mm, funksion Pan & Tilt, Auto-Tracking, audio dy-drejtimëshe dhe ndriçim inteligjent me IR + White LED. Mbështet lidhje wireless 2.4GHz, ruajtje lokale me microSD deri 256GB dhe analiza Smart Alarm për siguri të avancuar në ambiente të brendshme.
Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~350°(P); -25~90°(T) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Aperture Type | Fixed |
| Field of View | 78.9°(H); 41°(V); 92.9°(D) |
| DORI Distance | Detect: 80m / Observe: 31.75m / Recognize: 16m / Identify: 8m |
| Pan & Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| White LEDs | 1 |
| White Light Distance | Up to 10m |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A / G.711U |
| Audio Sampling Rate | 8kHz / 16kHz |
| Image | |
| Max. Resolution | 4MP, 2560×1440@20fps |
| Main Stream | PAL: 20fps (2560×1440, 2304×1296, 1920×1080, 1280×720, 704×576) / NTSC: 20fps (2560×1440, 2304×1296, 1920×1080, 1280×720, 704×480) |
| Sub Stream | PAL: 20fps / NTSC: 20fps |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock White Balance |
| OSD | Character Overlay, max. 48 characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict; MAC Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast; FTP |
| System Compatibility | ONVIF(Profile S/T); SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+ |
| Wi-Fi | |
| Wireless Standard | IEEE 802.11b/g/n |
| Transmission Distance | Up to 30m (depending on environment) |
| Frequency Range | 2.4GHz ~ 2.4835GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK / WPA2-PSK |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1× Built-in Mic |
| Built-in Speaker | 1× Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | microSD/microSDHC/microSDXC card up to 256GB |
| General | |
| Web Client Language | Chinese / English / Vietnamese |
| Operating Temperature | -10℃~45℃ (14℉~113℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃~45℃ (14℉~113℉) |
| Storage Humidity | 10%~95%RH (non-condensing) |
| Power Supply | DC5V±5% USB Type-C, Max. 7.5W |
| Protection | Surge 500V; ESD 6000V |
| Boundary Dimensions | 80(L)×80(W)×113(H)mm |
| Package Dimensions | 97(L)×97(W)×165(H)mm |
| Gross Weight | 0.36kg |
