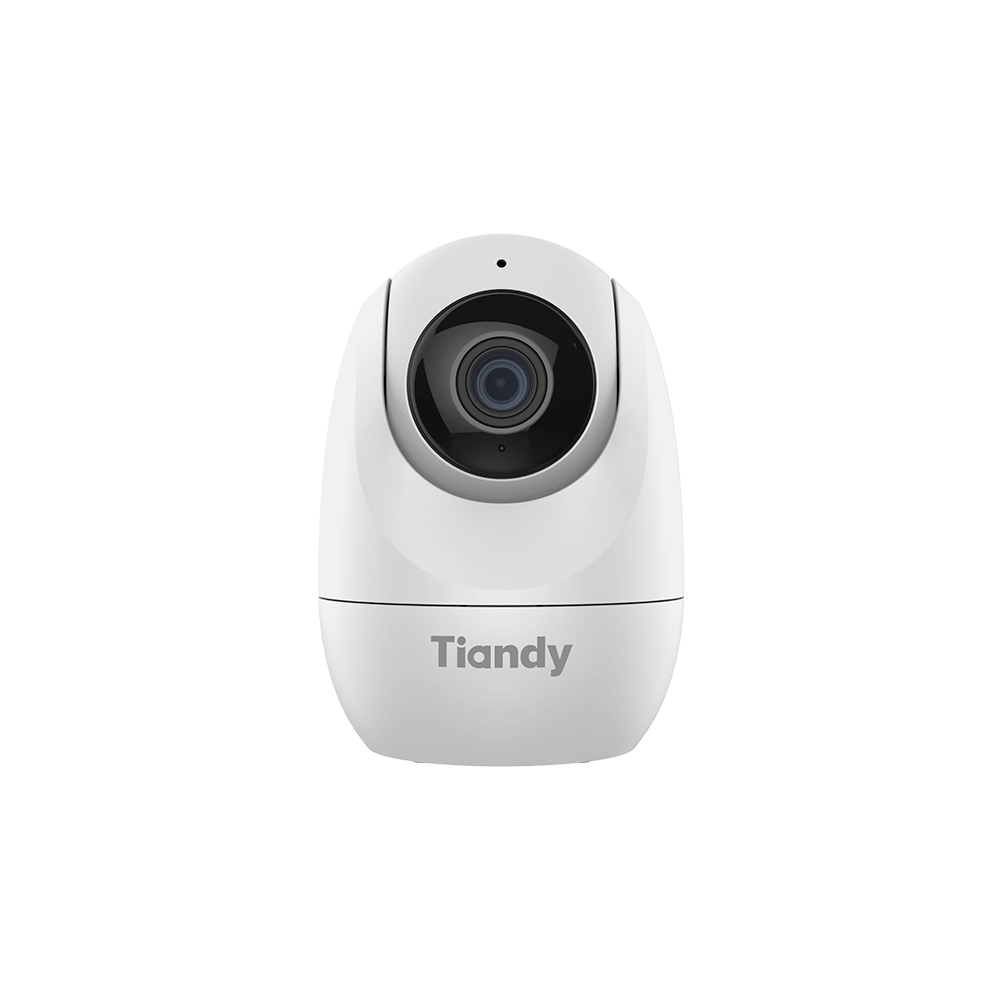

3MP Fixed Color Maker Wi-Fi PT Camera TC-H332N 9DB-4
TC-H332N 9DB-4
Përshkrim
Kamerë IP Wi-Fi PTZ 3MP me lente fikse 4mm, funksion Pan & Tilt, Auto-Tracking, audio dy-drejtimëshe dhe ndriçim inteligjent me IR dhe White LED. Kamera mbështet lidhje wireless 2.4GHz, ruajtje lokale me microSD deri 256GB dhe analiza Smart Alarm për monitorim të avancuar në ambiente shtëpiake dhe profesionale.
Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.02Lux@(F2.0, AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~350°(P); -25~90°(T) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 84.6°(H); 46.3°(V); 98.1°(D) |
| DORI Distance | Detect: 59.3m / Observe: 23.5m / Recognize: 11.9m / Identify: 5.9m |
| Pan & Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| White LEDs | 1 |
| White Light Distance | Up to 10m |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8kHz / 16kHz |
| Image | |
| Max. Resolution | 3MP, 2304×1296@20fps |
| Main Stream | PAL: 20fps (2304×1296, 1920×1080, 1280×720) / NTSC: 20fps (2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL: 20fps / NTSC: 20fps |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock White Balance |
| OSD | Character overlay, max. 48 characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T); SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Wi-Fi | |
| Wireless Standard | IEEE 802.11b/g/n |
| Transmission Distance | Up to 30m (depending on environment) |
| Frequency Range | 2.4GHz ~ 2.4835GHz |
| Channel Bandwidth | 20/40MHz |
| Wi-Fi Security | WPA-PSK / WPA2-PSK |
| Interface | |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1× Built-in Mic |
| Built-in Speaker | 1× Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | microSD/microSDHC/microSDXC up to 256GB |
| Bluetooth Provisioning | Yes |
| General | |
| Operating Temperature | -10℃~45℃ (14℉~113℉) |
| Operating Humidity | ≤95%RH |
| Storage Temperature | -10℃~45℃ (14℉~113℉) |
| Storage Humidity | 10%~95%RH (non-condensing) |
| Power Supply | DC5V±5% USB Type-C, Max. 7W |
| Protection | Surge 500V; ESD 6000V |
| Boundary Dimensions | 80(L)×80(W)×113(H)mm |
| Package Dimensions | 97(L)×97(W)×160(H)mm |
| Gross Weight | 0.36kg |
