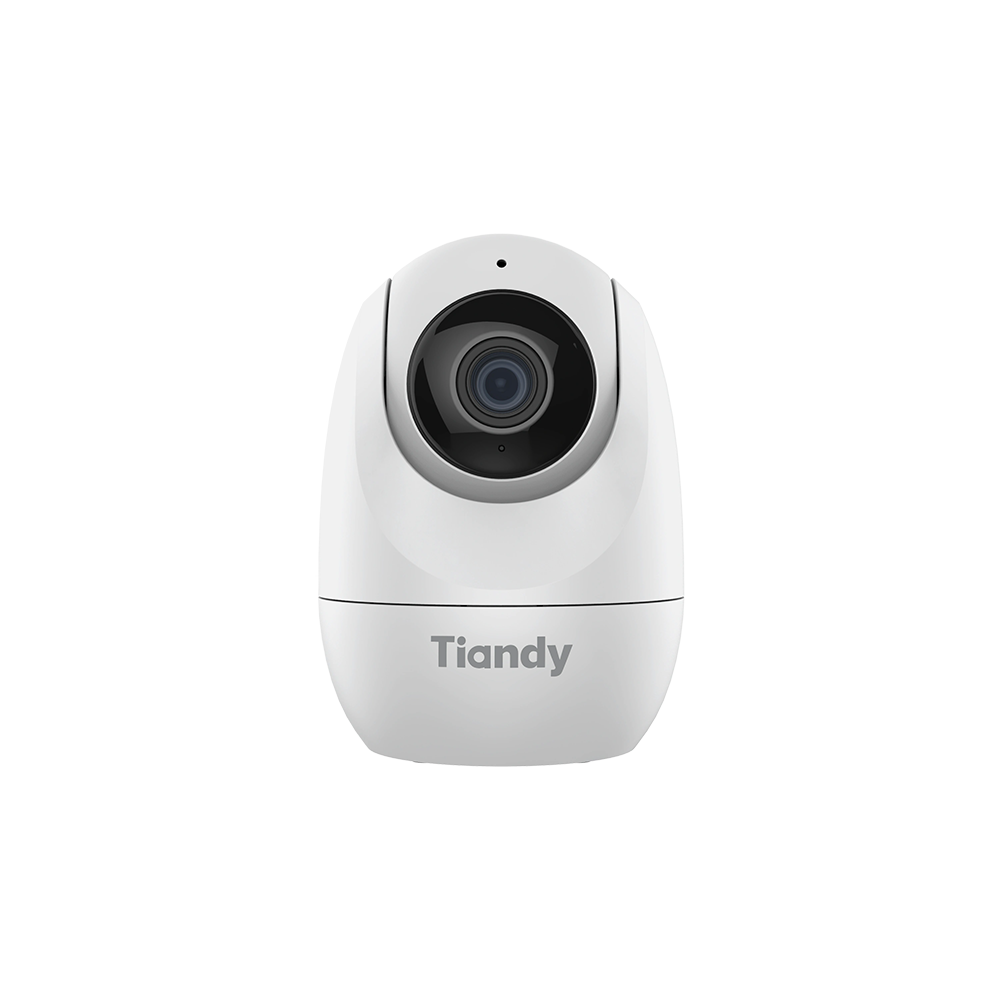

2MP Fixed Wi-Fi PT Camera TC-H322N 9IA-4
TC-H322N 9IA-4
Përshkrim
Kamerë IP PTZ 2MP me lente fikse 4mm, funksion Pan & Tilt, Wi-Fi të integruar dhe audio dy-drejtimëshe. Pajisja mbështet Auto-Tracking, Smart Alarm, ruajtje lokale me microSD deri 256GB dhe kontroll të lëvizjes me 255 pozicione preset, duke ofruar monitorim fleksibil në ambiente të brendshme.
Specifications
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/3" CMOS |
| Min. Illumination | Color: 0.02Lux@(F2.0,AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | DWDR |
| S/N | >38dB |
| Angle Adjustment | 0~350°(P); -25°~90°(T) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture Range | F2.0 |
| Aperture Type | Fixed |
| Field of View | 76.5°(H); 41.9°(V); 89°(D) |
| DORI Distance | Detect: 59.3m / Observe: 23.5m / Recognize: 11.9m / Identify: 5.9m |
| Pan & Tilt | |
| Pan Speed | 45°/s |
| Tilt Speed | 30°/s |
| Preset Positions | 255 |
| Illuminator | |
| IR LEDs | 4 |
| IR Distance | Up to 15m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
| Video Bit Rate | 32k~4Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8kHz / 16kHz |
| Image | |
| Max. Resolution | 2MP, 1920×1080@30fps |
| Main Stream | PAL: 25fps (1920×1080, 1280×720, 704×576) / NTSC: 30fps (1920×1080, 1280×720, 704×480) |
| Sub Stream | PAL: 25fps / NTSC: 30fps |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock White Balance |
| OSD | Character Overlay, max. 48 characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Exceptions Alarm | Disk Full; Disk R/W Error; IP Address Conflict |
| Linkage Method | Trigger Sound; Trigger Recording; Trigger Capture |
| Video Analytics | Smart Alarm |
| Auto-Tracking | Yes |
| Network | |
| Protocols | RTSP; HTTP; TCP; UDP; ICMP; DHCP; DNS; NTP; TLS v1.2; IPv4; SSH; Unicast |
| System Compatibility | ONVIF(Profile S/T); SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Wireless Parameters | |
| Wireless Standard | IEEE 802.11 b/g/n |
| Encryption Method | WPA-PSK / WPA2-PSK |
| Frequency Range | 2.4GHz - 2.4835GHz |
| Channel Bandwidth | 20MHz |
| Wireless Range | Up to 50m |
| Antenna | 1× Antenna |
| Interface | |
| Built-in Mic | 1× Built-in Mic |
| Built-in Speaker | 1× Built-in Loudspeaker |
| Reset Button | Yes |
| On-board Storage | microSD/microSDHC/microSDXC up to 256GB |
| Bluetooth Provisioning | Yes |
