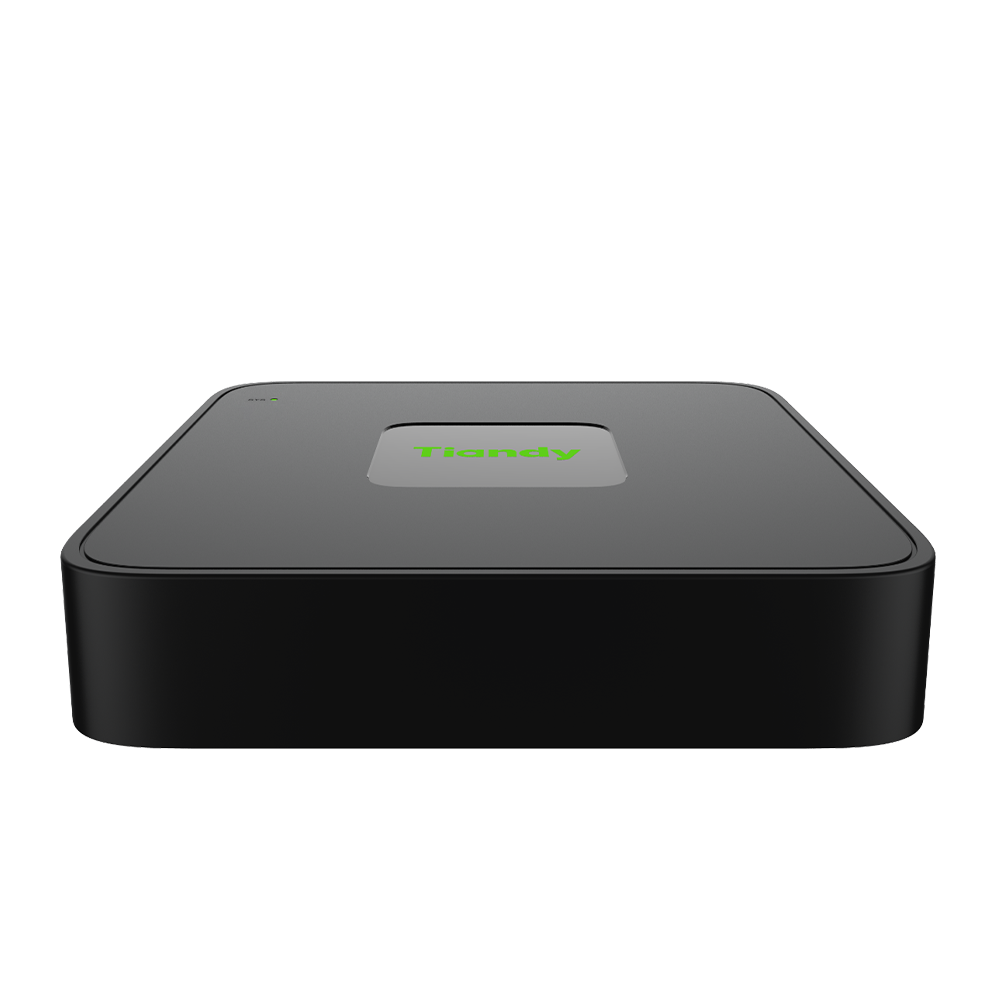

H.265 1HDD 8ch PSE NVR (TC-R3108)
,

H.265 1HDD 8ch PSE NVR (TC-R3108)

TC-R3108
Spec: I/B/P8/C/Eu/L/S

DATASHEET

94.36 €

Koha e arritjes së produktit : 04/11/2025 - 05/11/2025
HD Input•
Plug and play• S 265/H.265/H.264 video formats
•Connectable to the third-party network cameras
• Up to 8-channel input• 8 PoE ports
• Supports live view, storage, and playback of the connected camera at up to 6MP resolution
HD Output
• 1×HDMI output• HDMI Video output at up to 4K resolutionHD Storage• 1 SATA interfaces, up to 8TB for each HDD• S 265 compression effectively reduces the storagespace and costs by up to 75%HD Transmission• 1×RJ45 self-adaptive 10/100 Mbps network interface• PoE Port: 8×RJ45 self-adaptive 10/100 Mbps network

interfaces

Various Applications

• Centralized management of IP cameras, including

configuration, information import/export, real-time

information display, upgrade, etc.

• Connectable to smart IP cameras from Tiandy and the

recording, playing back, and backing up

• Support plug-in-free browsing and can preview

videos on all browsers

• Support cloud upgrade

SKU: 8580 Categories: ,
Video and Audio
Access Channel 8
Incoming Bandwidth 60Mbps
Outgoing Bandwidth 40Mbps
Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Preview decoding   capability 6MP*1,5MP*1,4MP*2,3MP*2,1080P*4,720P*8,4CIF*8
Playback decoding   capability 6MP*1,5MP*1,4MP*1,3MP*2,1080P*3,720P*4
Video Output 1*HDMI
HDMI Output HDMI:1024*768(60Hz),(720P   )1280*720(50Hz/60Hz),1280*800(60Hz),

1440*900(60Hz),(1080P)1920*1080(50Hz/60Hz),(4K)3840*2160(30Hz)
VGA Output N/A
Multi-screen   Display 1/3/4/5/6/7/8/9
Third-party Camera   Access ONVIF;RTSP
Audio Input N/A
Audio Output N/A
Two-Way Audio N/A
Liveview display N/A
Compression
Video S+265;H.265;S+264;H.264
Audio G711A;G711U;AAC;ADPCM_DIV4
Stream Type Video;Video &   Audio
Network
Network Protocol ARP;DDNS;DHCP;DNS;HTTP;ICMP;IGMP;IPv4;IPv6;NTP;RTCP;RTP;RTSP;SSH;TCP/IP;UDP;UPnP
Mobile Phone Access Android;iOS;P2P_A
System   Compatibility CGI;SDK
Web IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+
Record Playback
Multi-channel   Playback 4
Record Mode alarm   recording;Schedule recording
Storage Local HDD
Backup USB storage device
Playback Function Play/Pause/Stop/Slow/Speed/Backwards   30s/Forwards 30s/Full screen/backup (videoEditing)
Alarm
General Alarm Motion;Mask Alarm;Video Loss
Alert Alarm IP Conflict;MAC Conflict;Network Disconnected;No disk;Illegal Access;Disk Full;Disk R/W   error;Video Abnormal;

Abnormal found in smart of disk;Abnormal temperature of the disk;POE overloaded;IPC voltage abnormal;RTC failure
Intelligent   Analytics
VCA Detection by   Camera Advanced   Intelligence
VCA Search N/A
Face Detection by   Camera
Performance N/A
Face Attributes N/A
Face Picture   Library N/A
Face Picture   Comparison N/A
External Port
HDD 1 SATA ports,up to   6TB for a single HDD. The maximum HDD capacity varies with environment   temperature
Disk Group N/A
RAID N/A
eSATA N/A
USB 2*USB2.0
HDMI 1*HDMI
VGA N/A
RJ-45 1*RJ-45,10/100 Mbps   self-adaptive Ethernet port
SATA 1 SATA interface
RS232 N/A
RS485 N/A
Alarm I/O N/A
POE
POE Interface 8×RJ45 self-adaptive   10/100 Mbps network interface
POE Gross Power 45W
Power per POE Port 30W
Max Current per POE   Port 600mA
General Parameter
UI Language English;Spanish;Italian;French;Dutch;German;Portuguese
Power Supply DC48V 1.35A
Power Consumption ＜10W(without   HDD&without POE)
NetWeight 0.45kg
GrossWeight 0.85kg
Boundary Dimensions 200(L)200(W)43(H)mm
Package Dimensions 315(L)70(W)235(H)mm
Operating   Temperature -10℃～+55℃
Operating Humidity 10%~90%RH
Storage Temperature -10℃～+55℃
Storage Humidity 10%~90%RH
Package Kit Network Video   Recorder;Screw pack;Mouse;Power adapter
