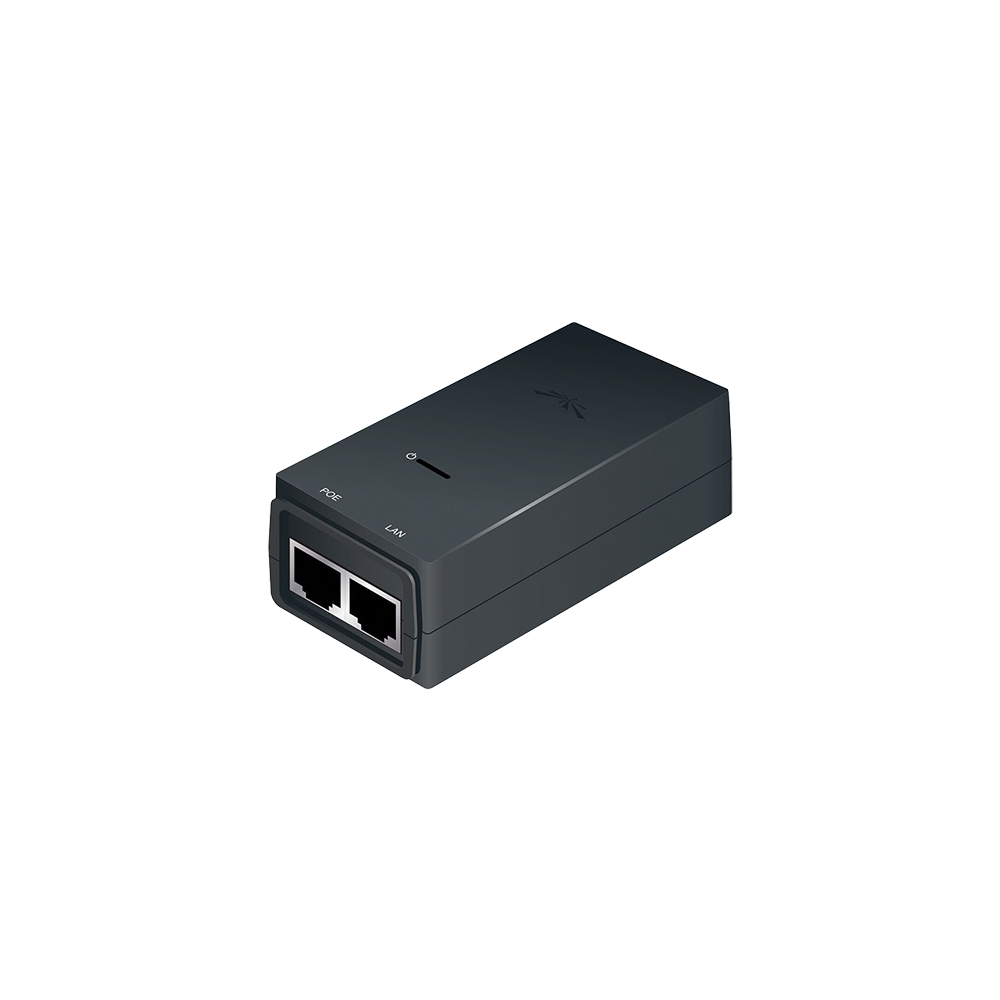

Ubiquiti Gigabit 24V PoE Injector 12W
PoE-24-12W-G
Unifi
Ubiquiti Networks POE-24-12W-G is a 24VDC 0.5 12W replacement Gigabit PoE adapter for use with airMAX and UniFi products. It features ESD protection and earth grounding.
Product Specifications
Dimensions: 87 x 44 x 29mm (2.43 x 1.73 x 1.14″)
Weight: 99.4g (3.51oz)
Gigabit LAN Port: Yes
Remote Reset Capability: Yes
Reset Button Yes
Input Voltage: 90-260VAC @ 47064Hz
Input Current:
0.3A @ 120VAC
0.2A @ 240VAC
Inrush Current:
<30A Peak @ 120VAC
<60A Peak @ 230VAC
Efficiency: 75 %
Output Ripple: 1% Max.
Switching Frequency: 50kHz
Line Regulation: ±1%
Load Regulation: ±3%
2-Pair Powering: Pins 4,5( ) and Pins 7,8(-)
Operating Temperature: 0 to 40°C (32 to 104°F)
Storage Temperature: -30 to 70°C (-22 to 158°F)
Operating Humidity: 35 to 95% non-condensing
AC Connector: IEC-320 C6
Data IN/PoE: RJ45 Shielded Socket
Surge Protection: Difference and Common Mode
Clamping Protection: 11V Data, 60V Power
Max. Surge Discharge: 1500A (8/20us) Power
Peak Pulse Current: 36A (10/1000us) Data
Shunt Capacitance: <5pF Data
Response Time: <1ns
