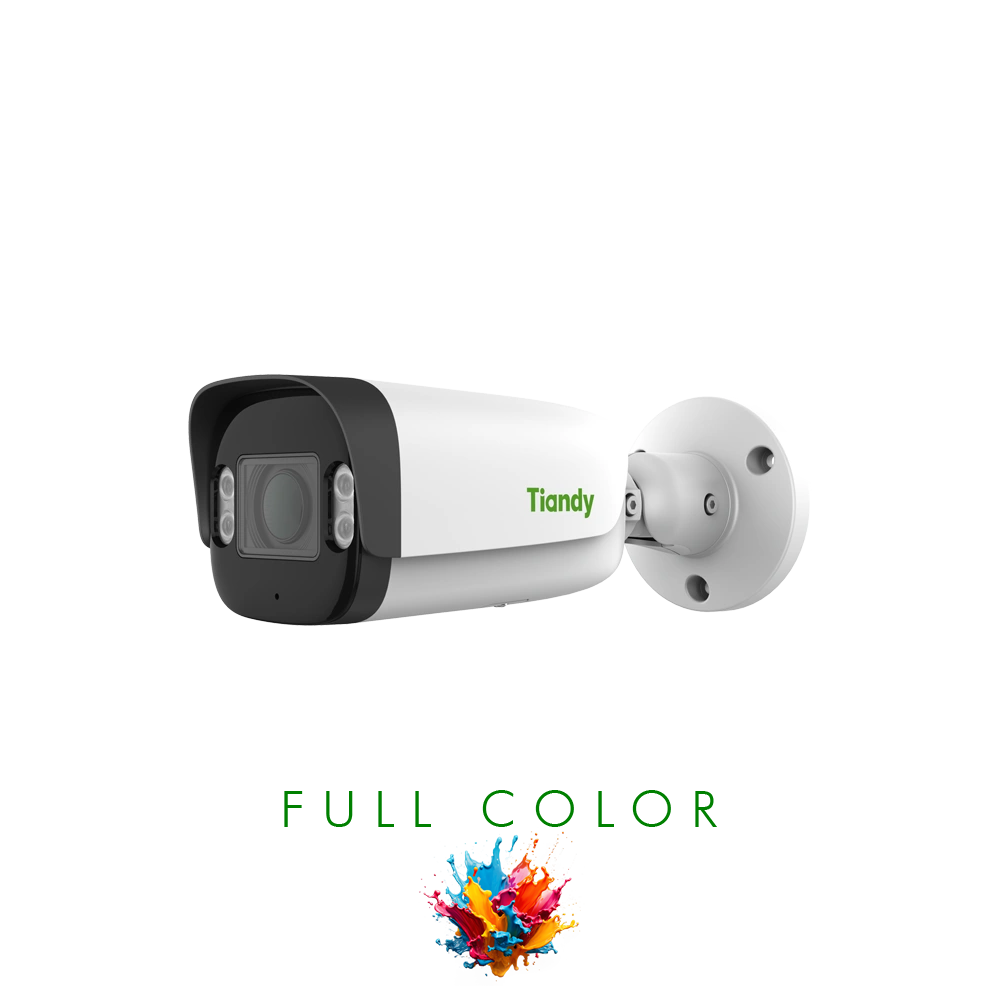

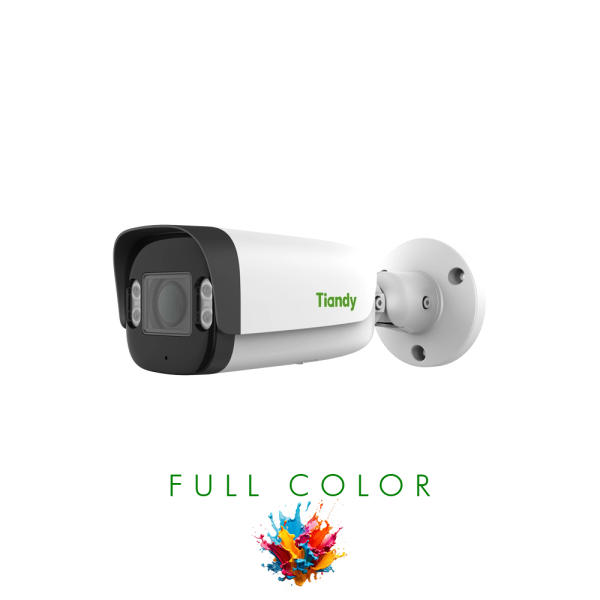

Metal housing
Up to 8MP,3840×2160@20fps
S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
IR range up to 80m
1×Built-in Mic
Support microSD/microSDHC/microSDXC card,up to
512GB
Support human/vehicle classification
Operating conditions -35℃~65℃(-31℉~149℉), ≤95%RH
DC12V±25%,Max. 8W, PoE:IEEE 802.3af,Max. 9W
IP67
| Category | Specification |
|---|---|
| Image Sensor | 1/2.8″ CMOS |
| Min. Illumination | Color: 0.002Lux@(F1.6, AGC ON); B/W: 0Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day & Night | IR-cut filter with auto switch (ICR) |
| Smart IR | Yes |
| WDR | 120dB |
| S/N Ratio | >42dB |
| Angle Adjustment | Pan: 0 |
| Lens Type | Fixed focal lens |
| Focal Length | 4mm |
| Lens Mount | M12 |
| Aperture | F1.6 (Fixed) |
| Field of View | H: 87.3°; V: 44.8°; D: 102.9° |
| DORI Distance | Detect: 110m; Observe: 43.5m; Recognize: 22m; Identify: 11m |
| IR LEDs | 4 (Up to 80m, 850nm) |
| White LEDs | 4 (Up to 15m) |
| Video Compression | S+265 / H.265 / H.264B/M/H / Motion JPEG |
| Video Bitrate | 32kbps ~ 16Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D / AAC_LC |
| Audio Sampling Rate | 8kHz / 32kHz / 48kHz |
| Max. Resolution | 8MP (3840×2160@20fps) |
| Main Stream | PAL: 20fps(3840×2160, 3072×2048), 25fps(2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 20fps(3840×2160, 3072×2048), 30fps(2560×1440, 2304×1296, 1920×1080, 1280×720) |
| Sub Stream | PAL: 25fps(704×576, 704×288, 640×360, 352×288) NTSC: 30fps(704×480, 704×240, 640×360, 352×240) |
| Third Stream | PAL: 25fps(704×576, 704×288, 352×288, 640×480) NTSC: 30fps(704×480, 704×240, 352×240, 640×480) |
| BLC / HLC / 3D DNR | Yes |
| White Balance | Auto / Semi-Auto / Manual / Sunshine / Nature Light / Warmlight Lamp / Daylight Lamp / Filament Lamp / Lock |
| ROI | 8 rectangular static areas |
| Corridor Mode | Yes |
| OSD Overlay | 5 regions, max 127 chars (42 Chinese), multiple font sizes |
| Picture Overlay | 1×200×200 BMP (16 colors) |
| Privacy Mask | 4 static areas |
| Defog | Yes |
| General Alarm | Motion Detection, Mask Alarm |
| Exception Alarm | Voltage Alarm, Disk Full, Disk R/W Error, IP Conflict, MAC Conflict, FTP Exception, Network Disconnection |
| Linkage Method | Email, Sound, Recording, Capture, Notify Center |
| Video Analytics | Human/Vehicle Classification, Tripwire, Perimeter |
| Rules of Behavior | 1 Scene, up to 8 rules |
| ANR | Yes |
| Protocols | RTSP, RTMP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, IGMP, SNMP v1/v2/v3, DHCP, DNS, DDNS, EasyDDNS, NTP, SMTP, TLS v1.2, SSL, 802.1X, QoS, IPv4, IPv6, PPPoE, SSH, Unicast, Multicast, RTCP, ARP, SRTP, FTP, SFTP |
| System Compatibility | P2P, ONVIF (Profile S/T/G/M), SDK, CGI, Milestone |
| Remote Connections | ≤2 |
| Client Software | Easy7 VMS, EasyLive Plus (Mobile) |
| Web Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | Yes |
| Reset Button | Yes |
| On-board Storage | microSD/microSDHC/microSDXC, up to 512GB |
| RTC | Yes |
| Languages | 20 (incl. English, Albanian, Chinese, Spanish, etc.) |
| Operating Temp. | -35℃ ~ 65℃ (-31℉ ~ 149℉) |
| Operating Humidity | ≤95% RH |
| Storage Temp. | -35℃ ~ 65℃ |
| Storage Humidity | 10% ~ 95% RH (non-condensing) |
| Power Supply | DC12V ±25% (Max. 8W); PoE IEEE 802.3af (Max. 9W) |
| Protection | Surge: 4000V; ESD: 6000V; IP67 |
| Dimensions | 239×90×90 mm |
| Package Dimensions | 280×125×140 mm |
| Gross Weight | 1.147kg |
