AX3000 2.5G Wi-Fi 6 Access Point ( AP3000_P)


A wall/ceiling-mounted WiFi 6 AP, featuring large RAM and shielded 2.5G ports, designed for connecting high-density large offices, classrooms, and transportation infrastruction..

DATASHEET


  •  5-Stream Dual-Band Wi-Fi 6
  •  1× Shielded 2.5GbE PoE In
  •  802.3at, Passive PoE, DC
  •  Watchdog, Schedule Reboot
  •  Covers 130 m² (1,400 ft²) with 5-Stream
  •  200 Connected Devices

86.34

Model Version AP3000 1.0
CPU Chipset MT7981BA+MT7976CN+RTL8221B-VB-CG
CPU Details 1.3 GHz Dual-Core CPU
Memory/Stroage Flash/ROM 256 MB (2 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR4
Wireless 5 GHz Wi-Fi Speed 2402Mbps
Wi-Fi Bands EU + DFS, US + DFS
2.4 GHz Wi-Fi Speed 574 Mbps
5 GHz Wi-Fi Streams 3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 5× Internal
5 GHz Anntenna Gain Max 5.6 dBi
2.4 GHz Antenna Gain Max 4.8 dBi
FEM or PA/LNA
  • 5 GHz: 3× High-Power
  • 2.4 GHz: 2× High-Power
Range Performance Max: 130 m (427 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Three wooden walls with thickness < 3.8 cm (1.5”)
One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)
Wi-Fi Transmission Power
  • CE:
    <20 dBm (2.4 GHz)
    <23 dBm (5.15 GHz ~ 5.35 GHz)
    <30 dBm (5.47 GHz ~ 5.725 GHz)
  • FCC:
    <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz)
    <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz & 5.725 GHz ~ 5.825 GHz)

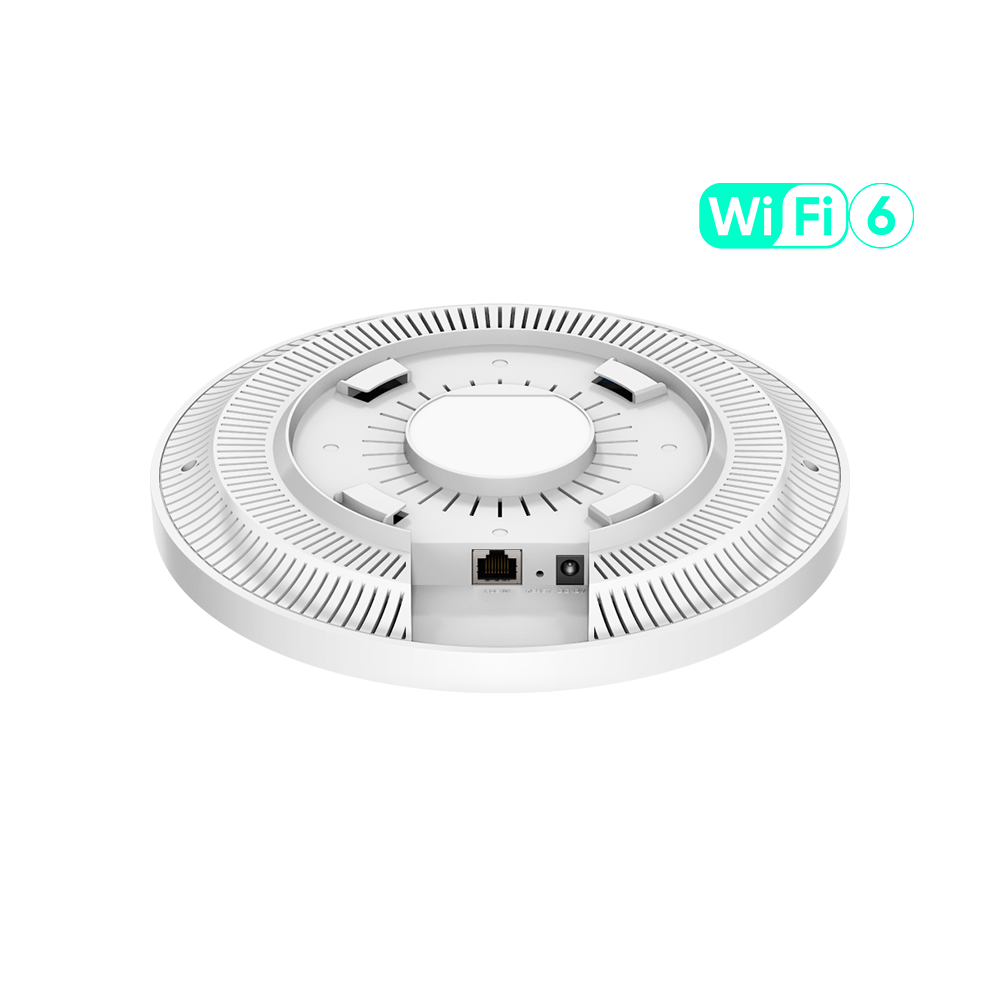

Interfaces 2.5G RJ45 Ports 1
Ethernet Notes Accepts PoE powering
LED System
Physical Buttons Reset Button
Power Input DC Jack, PoE via Ethernet Port
Power Power Methods
  • DC
  • 802.3at/af PoE
  • Passive PoE
DC 12V 1.5A
Passive PoE 48 ~ 57V
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1.5A DC
Max Power Consumption (W) 12 W (48 V PoE) 12 W (DC)
Idle Power Consumption (W) 6.1 (48 V PoE) 6.1 W (DC)
Reliability System Stability Watchdog
ESD Air Protection 4kV
ESD Contact Protection 8kV
Environment Operating Temperature: -10 ℃ ~ 60 ℃ (14 ℉ ~140 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing
Mechanical Installation
  • Wall-Mounting
  • Ceiling-Mounting
Dimension Φ231.9×57.1 mm
Φ9.13×2.25 inches
Package Content
  • Main Product
  • Power Adapter
  • Mounting Kit
  • Ethernet Cable
  • Installation Guide
