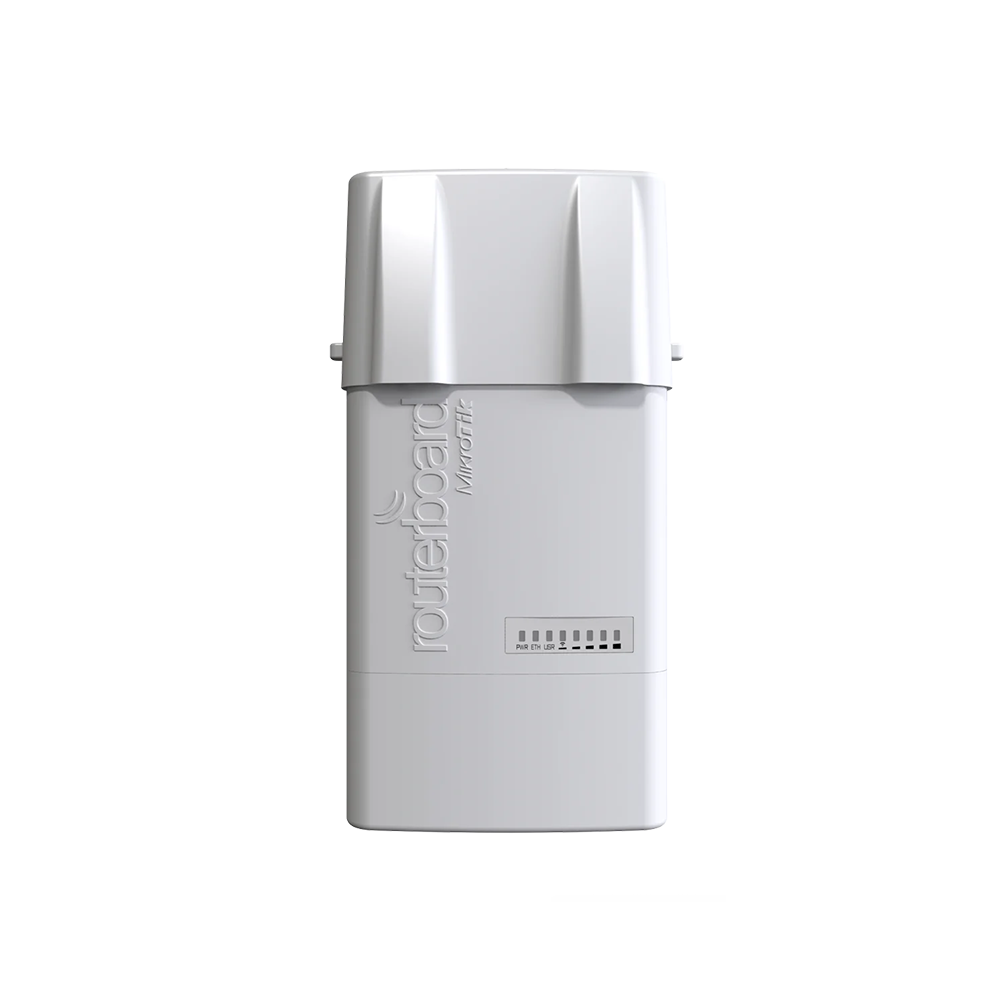

BaseBox 2
RB912UAG-2HPnD-OUT – BaseBox 2 (RouterBOARD 912UAG with 600Mhz Atheros CPU, 64MB RAM, 1xGigabit LAN, USB, miniPCIe, built-in2Ghz 802.11b/g/n 2×2 two chain wireless with two RP-SMA connectors, RouterOS L4, outdoor enclosure, POE, PSU,pole mount, rail mount)
91.76 €
he BaseBox2 is an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.
The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
| Details | |
|---|---|
| Product code | RB912UAG-2HPnD-OUT |
| CPU nominal frequency | 600 MHz |
| CPU core count | 1 |
| Size of RAM | 64 MB |
| 10/100/1000 Ethernet ports | 1 |
| MiniPCI-e slots | 1 |
| Wireless standards | 802.11b/g/n |
| Wireless chip model | AR9342 |
| Number of USB ports | 1 |
| PoE in | Yes |
| Supported input voltage | 8 V – 30 V |
| Voltage Monitor | Yes |
| PCB temperature monitor | Yes |
| Operating System | RouterOS |
| Tested ambient temperature | -40C to 70C |
| License level | 4 |
| CPU | AR9342 |
| Max Power consumption | 10W |
| USB slot type | USB type A |
| Number of chains | 2 |
| Storage type | NAND |
| Storage size | 64 MB |
