G3 Reader Pro (UA-G3-Pro-B)
414.87 €
UA-G3-Pro-B
Përshkrim

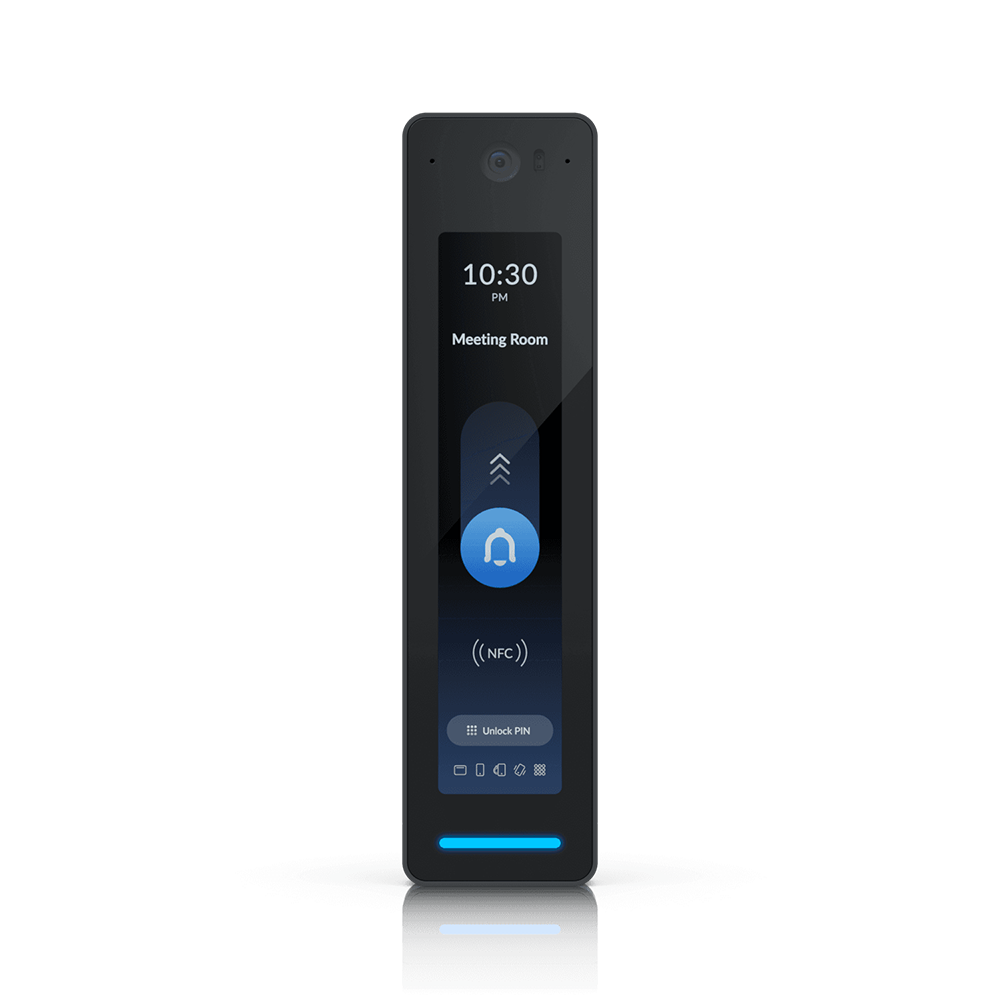

Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.
Specifications
| Specification | Value |
|---|---|
| Dimensions | 160 × 40.4 × 40.55 mm (6.3 × 1.59 × 1.6") |
| Weight | 136 g (4.8 oz) |
| Weatherproofing | IP55 |
| Integrated Camera | Yes |
| Camera Resolution | 12 MP (3072 × 4096) |
| Field of View | H: 98.6° / V: 125.7° / D: 157.8° |
| NFC Card & Keyfob Access | Yes |
| PIN Access | Yes |
| Apple / Google Wallet | Yes |
| Mobile Unlock | Yes |
| Two-Way Intercom & Doorbell | Yes |
| NDAA Compliant | Yes |
| UL 294 Security Level | Level I (Destructive, Line, Endurance, Standby) |
| Enclosure Material | Polycarbonate, Glass |
| Mount Material | Aluminum alloy |

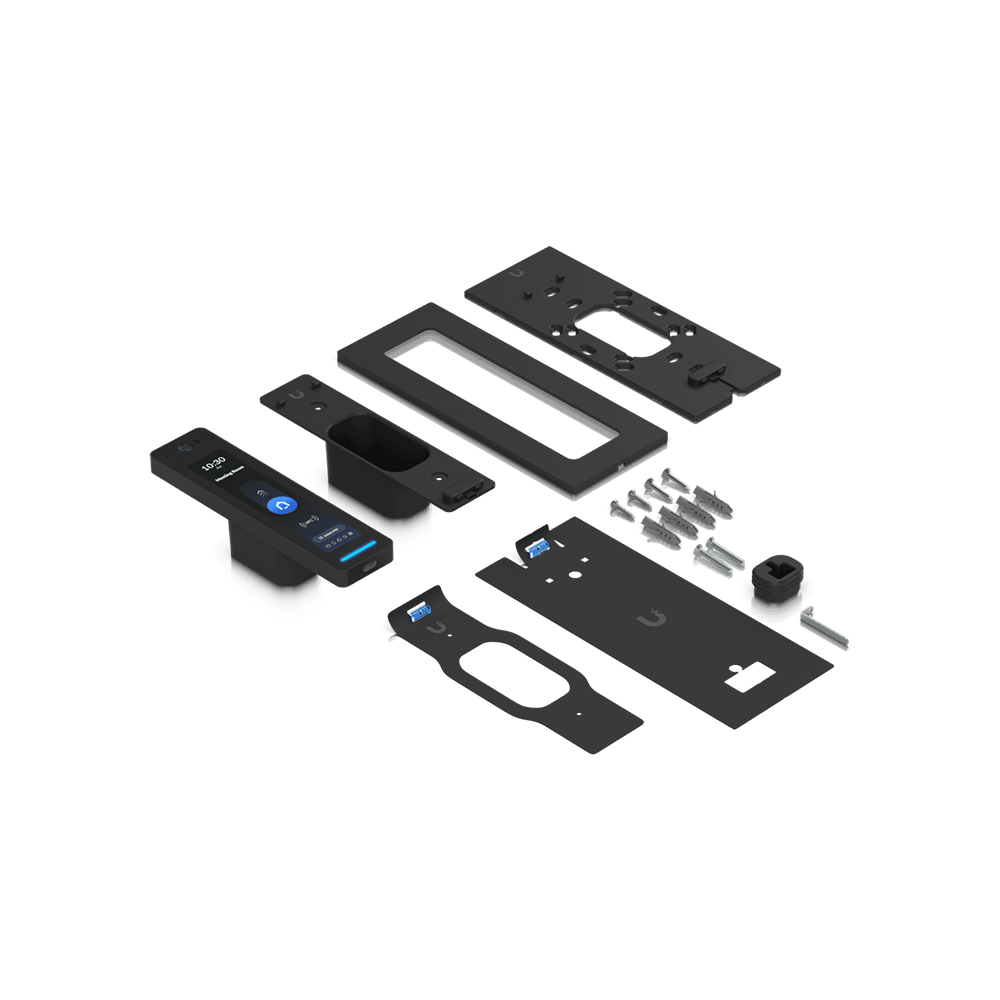

| Mounting Options | Wall & gang-box (included), angle & junction box (optional) |
| Indoor / Outdoor Use | Yes |
| Networking Interface | 1 × GbE RJ45 |
| Connectivity | BLE 4.2, NFC |
| Power Method | PoE |
| Supported Voltage | 48V DC |
| Max Power Consumption | 6 W |
| ESD / EMP Protection | Air ±15 kV / Contact ±8 kV |
| Display Size | 120 mm (4.7") |
| Display Type | Capacitive touch |
| Display Resolution | 1280 × 286 px |
| Brightness | 480 nits (typical) |
| Orientation | Portrait |
| Microphone | Yes |
| Speaker | Yes |
| LED Indicators | RGBW + Amber |
| Button | Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18") |
| NFC Standards | ISO/IEC 14443 A/B, 15693, 18092 |
| Supported NFC Tags | MIFARE Classic, DESFire, FeliCa (ID), NFC T1–T5 |
| PoE Cabling Requirement | Min. Cat 5e |
| Operating Temperature (Device) | −30 °C to 45 °C (−22 °F to 113 °F) |
| Operating Temperature (Display) | −10 °C to 45 °C (14 °F to 113 °F) |
| Operating Humidity | 5% – 90% non-condensing |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Grade (CAN/ULC-60839-11-1) | Grade I |
| Management Application | Access |
| Software Management | https://unifi.ui.com |
| Document Reference | UA-G3-Pro-W / UA-G3-Pro-B, V01 |
