Superlite 2MP, Tiandy IP 2MP CAMERA

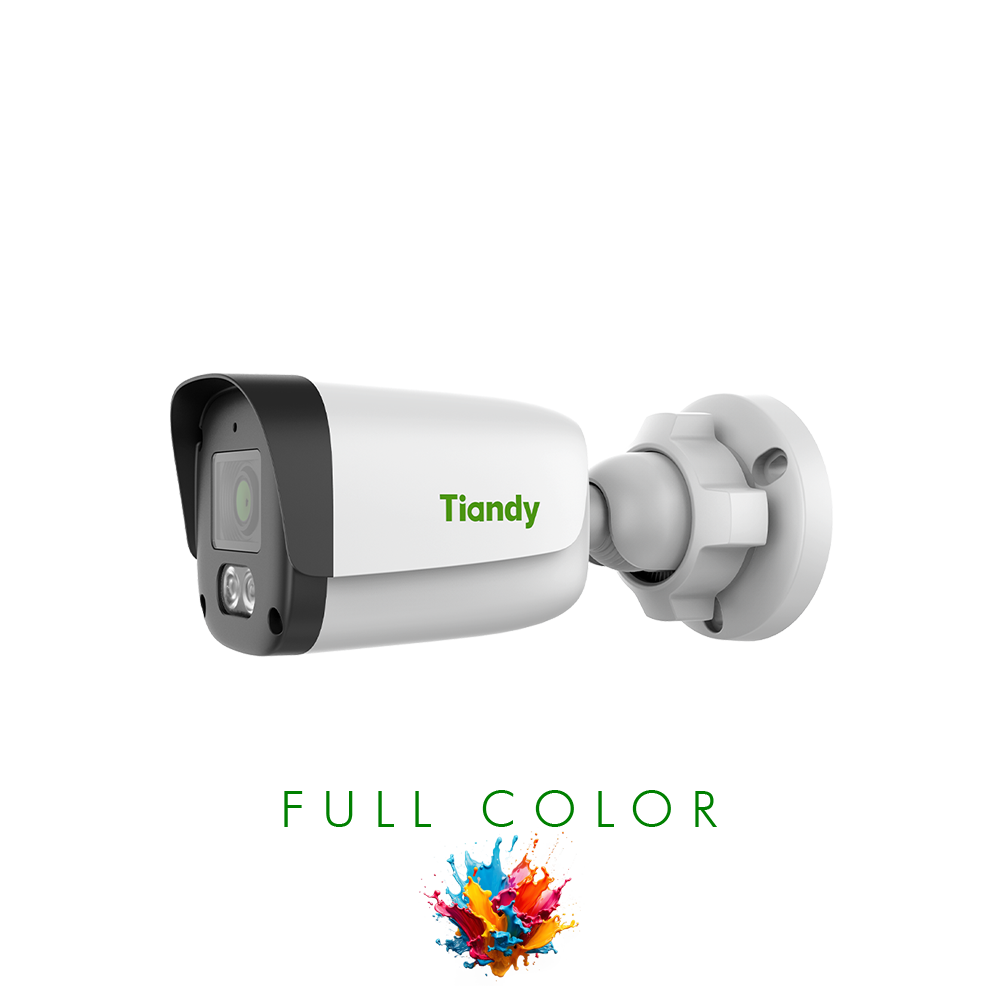

2MP Fixed Bullet Camera（colormaker） (TC-C32QN)
TC-C32QN
Spec:I5W/E/Y/2.8mm/V4.2
57.66 €
- DATASHEET·Metal+plastic housing·S+265/H.265/H.264B/H.264M/H.264H·Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR·IR Range 50m·Built-in Mic·Support Smart surveillance·Operating Conditions -30℃~60℃(No turning on the light), Humidity 95% or less (no condensation)
·DC12V±25%,MAX 6.5W, POE 802.3af,MAX 7W
·IP67
| Camera | |
| Image Sensor | 1/2.8″CMOS |
| Min. Illumination | Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR |
| Shutter Time | 1s~1/100000s |
| Day&Night | IR-cut filter with auto switch (ICR) |
| WDR | DWDR |
| S/N | >39dB |
| Angle Adjustment | 0~360°(P); 0~80°(T); 0~360°(R) |
| Lens | |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Lens Mount | M12 |
| Aperture Range | F1.6 |
| Field of View | 104.9°(H); 56.5°(V); 119.2°(D) |
| DORI Distance | Detect:38.6m Observe:15.3m Recognize:7.7m Identify:3.8m |
| Illuminator | |
| IR LEDs | 2 |
| IR Distance | 50m |
| Wavelength | 850nm |
| White LEDs | 2 |
| Whitelight Distance | 15m |
| Compression Standard | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| Video Bit Rate | 32k~6Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Image | |
| Max. Resolution | 1920×1080@30fps |
| Main Stream | PAL:25fps(1920×1080, 1280×720, 640×480, 704×576) NTSC:30fps(1920×1080, 1280×720, 640×480, 704×480) |
| Sub Stream | PAL:25fps(704×576, 704×288, 640×360, 352×288) NTSC:30fps(704×480, 704×240, 640×360, 352×240) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | 8 rectangular static areas |
| OSD | Overlay of additional characters in 1 regions, 1 line, with a maximum of 48 characters or 16 Chinese characters per region; 16*16/32*32/48*48 |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| Feature | |
| Alarm Trigger | Motion Detection; Mask Alarm; IP Address Conflict |
| Linkage Method | trigger warmlight; trigger capture |
| Video Analytics | Tripwire; Perimeter |
| Rules of behavior analyse in 1 scene | 2 |
| Network | |
| Protocols | HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; DHCP; DNS; DDNS; Easy DDNS; NTP; QoS; IPv4; SSH; Unicast; RTSP; FTP |
| System Compatibility | P2P(Mutually exclusive with Profile G); ONVIF Profile S/T; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 Smart Client |
| Moblie Client | EasyLive Plus |
| Interface | |
| Communication Interface | 1*RJ-45,10/100 Mbps self-adaptive Ethernet port |
| General | |
| Web Client Language | 19 languages Simple Chinese/Traditional Chinese/English/Spanish/Korean/Italian/Turkish/Russian/Thai/French/Polish/Dutch/Hebrew/Arabic/Vietnamese/German/Ukrainian/Portuguese/Albanian |
| Operating Temperature | -30℃~60℃(No turning on the light) |
| Operating Humidity | Humidity 95% or less (no condensation) |
| Storage Temperature | -30℃~60℃ |
| Storage Humidity | Humidity 95% or less (no condensation) |
| Power Supply | DC12V±25%,MAX 6.5W; POE 802.3af,MAX 7W |
| Protection | Surge4000V; ESD6000V; IP67 |
| Boundary Dimensions | 164(L)73(W)73(H)mm |
| Package Dimensions | 180(L)90(W)95(H)mm |
| GrossWeight | 0.3Kg |
