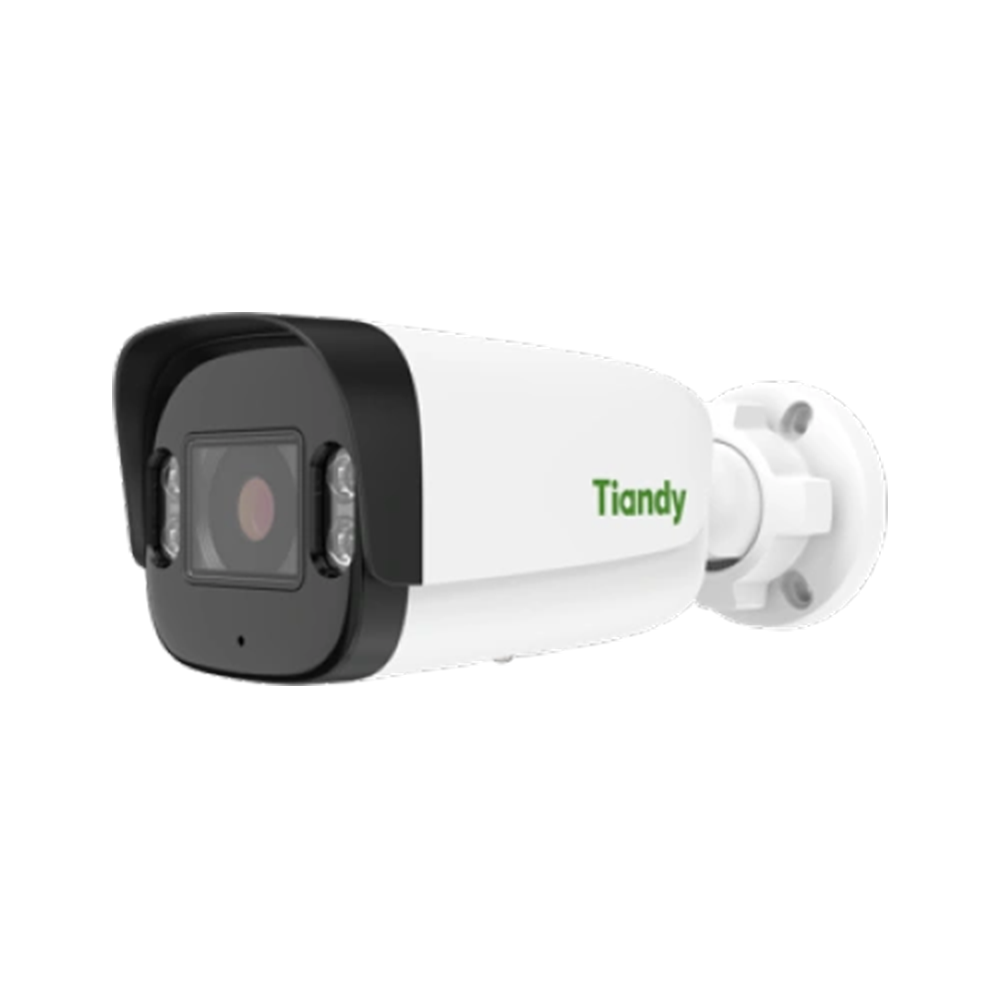

4MP Polar Day Bullet Camera TC-C34UV 3FRB-4
144.13 €
TC-C34UV
3FRB-4
Koha e arritjes së produktit : Kor 7, 2026 - Kor 8, 2026
Përshkrim
Kamera 4MP me lente fikse 4 mm, IR dhe mbrojtje IP67, mbështetje microSD deri 512 GB, inteligjencë video për njerëz/makinë dhe alarm.
Specifications
| Category | Specification |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0001 Lux @(F1.0, AGC ON) |
| Shutter Time | 1s~1/100000s |
| Day & Night | Fixed IR-cut |
| WDR | 120 dB |
| S/N Ratio | >46 dB |
| Angle Adjustment | Pan: 0~360°, Tilt: 0~80°, Rotate: 0~360° |
| Lens Type | Fixed focal lens |
| Focal Length | 4 mm |
| Lens Mount | M16 |
| Aperture | F1.0, Fixed |
| Field of View | 88.8°(H); 49°(V); 103.1°(D) |
| DORI Distance | Detect: 80 m, Observe: 31.7 m, Recognize: 16 m, Identify: 8 m |
| Illuminator | 4 White LEDs, distance 15 m |
| Video Compression | S+265, H.265, H.264B/M/H |
| Video Bit Rate | 32 kbps ~ 6 Mbps |
| Audio Compression | G.711A / G.711U / ADPCM_D |
| Audio Sampling Rate | 8/32/48 kHz |
| Max. Resolution | 4MP, 2688×1520 @25fps |
| Main Stream | PAL: 25fps (2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) NTSC: 24fps (same resolutions) |
| Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) NTSC: 24fps (704×480, 704×240, 640×360, 352×240) |
| BLC / HLC / AGC / 3D DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock |
| ROI | 8 rectangular static areas |
| OSD | Overlay, 1 region, 1 line, max 48 chars or 16 Chinese characters |
| Privacy Mask | 4 black static areas |
| Defog | Yes |
| General Alarm | Motion Detection; Mask Alarm |
| Exceptions Alarm | Voltage Alarm; Disk Full; Disk R/W Error; IP/MAC Conflict; FTP Server Exception; Network Disconnection |
| Linkage Method | Send Email; Trigger Recording; Trigger Capture; Notify Surveillance Center |
| Video Analytics | Human/Vehicle Classification; Tripwire; Perimeter |
| Rules of Behavior Analysis | 2 Scenes |
| ANR | Yes |
| Protocols | RTSP; HTTP; HTTPS; TCP; UDP; UPnP; ICMP; SNMP v1/v2/v3; DHCP; DNS; DDNS; Easy DDNS; NTP; TLS v1.2; QoS; IPv4; SSH; Unicast; Multicast; ARP; FTP |
| System Compatibility | P2P (exclusive with Profile G); ONVIF(Profile S/T/G/M); SDK; CGI; Milestone |
| Remote Connection | ≤2 |
| Client | Easy7 VMS |
| Mobile Client | EasyLive Plus |
| Web | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Communication Interface | 1×RJ-45 (10/100 Base-T) |
| Built-in Mic | 1 |
| Reset Button | Yes |
| On-board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| RTC | Yes |
| Languages | 19 languages |
| Operating Temp/Humidity | -35℃~65℃ / ≤95% RH |
| Storage Temp/Humidity | -35℃~65℃ / 10–95% RH |
| Power Supply | DC12V ±25%, Max 9 W; PoE IEEE 802.3af, Max 9.6 W |
| Protection | Surge 4000 V; ESD 6000 V; IP67 |
| Dimensions | 204×84×76 mm |
| Package Dimensions | 215×95×120 mm |
| Gross Weight | 0.60 kg |
