Specifications
| Model | WR1300E | |
| Hardware Features | Processor | Dual-Core CPU |
| Flash | 8 MB | |
| DDR | 128 MB | |
| Antenna | 4× Fixed Omni-Directional Antennas | |

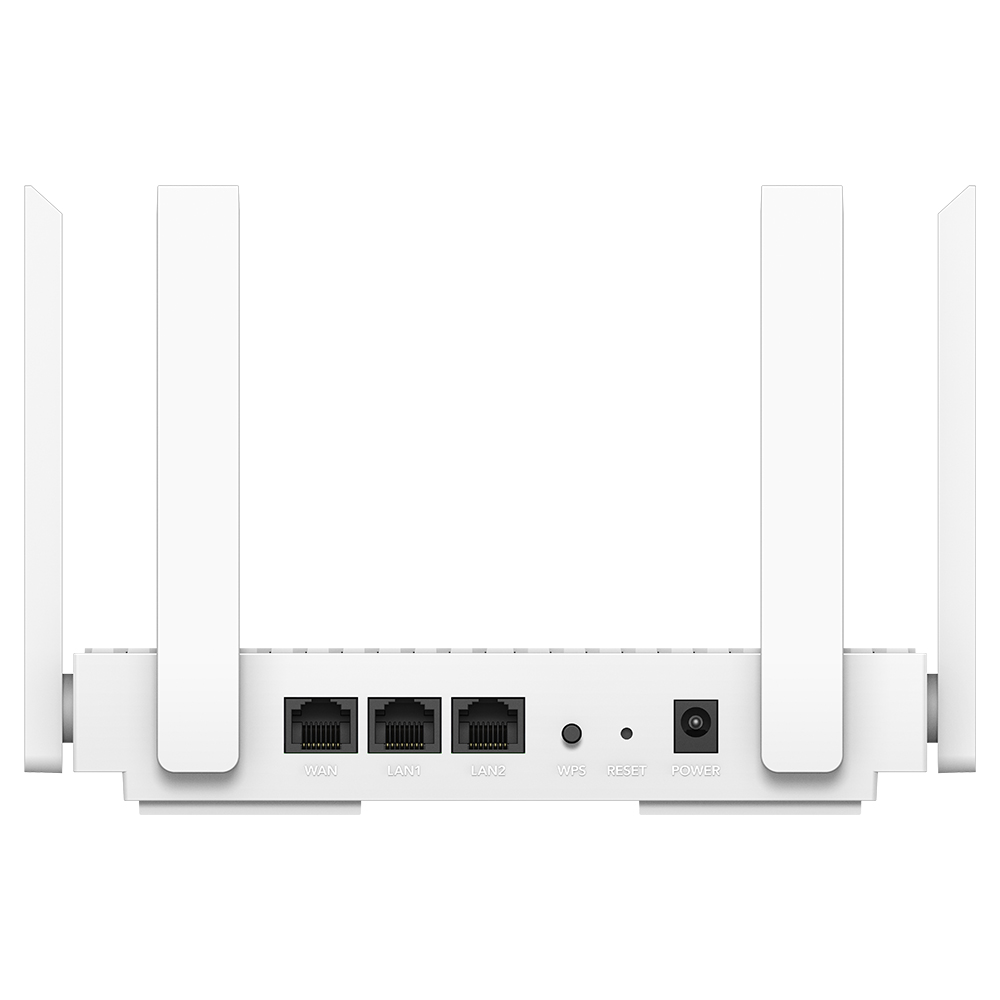

| Interface | 1× 1000/100/10 Mbps WAN Port | |
| 2× 1000/100/10 Mbps LAN Ports | ||
| Button | WPS Button, Reset Button | |
| External Power Supply | 12 V / 1 A | |
| Dimensions ( W x D x H ) | 180*107*35mm (Not Include Antennas)
200*117*35mm (Include Antennas) |
|
| Wireless Features | Wireless Standards | IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/b/g 2.4 GHz | ||
| Frequency | 5 GHz, 2.4 GHz | |
| Signal Rate | 867 Mbps (5 GHz), 300 Mbps (2.4 GHz) | |
| Compatible with 802.11a/b/g/n/ac Wi-Fi standards | ||
| Transmit Power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) | |
| FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) | ||
| Wireless Functions | Enable/Disable Wireless Radio, WMM | |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA2-PSK | |
| Software Features | WAN Type | Dynamic IP/Static IP/PPPoE |
| Management | Parental Control (Domain/IP/MAC Filter) | |
| Guest Network | ||
| DHCP | Server, DHCP Client List, Address Reservation | |
| Dynamic DNS | Compatible with 15 more DDNS providers | |
| Guest Network | 2.4 GHz guest network × 1 | |
| 5 GHz guest network × 1 | ||
| NAT | Port Forwarding, Port Triggering, UPnP, DMZ | |
| VPN Server and Client | PPTP/L2TP | |
| Others | Package Contents | AC1200 Wi-Fi Router |
| Power Adapter | ||
| RJ45 Ethernet Cable | ||
| Quick Installation Guide | ||
| System Requirements | Windows, MAC OS, NetWare, UNIX, or Linux | |
| Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser | ||
| A fiber/cable/DSL Modem, or other devices providing wired internet | ||
| Subscription with an internet service provider for internet access | ||
