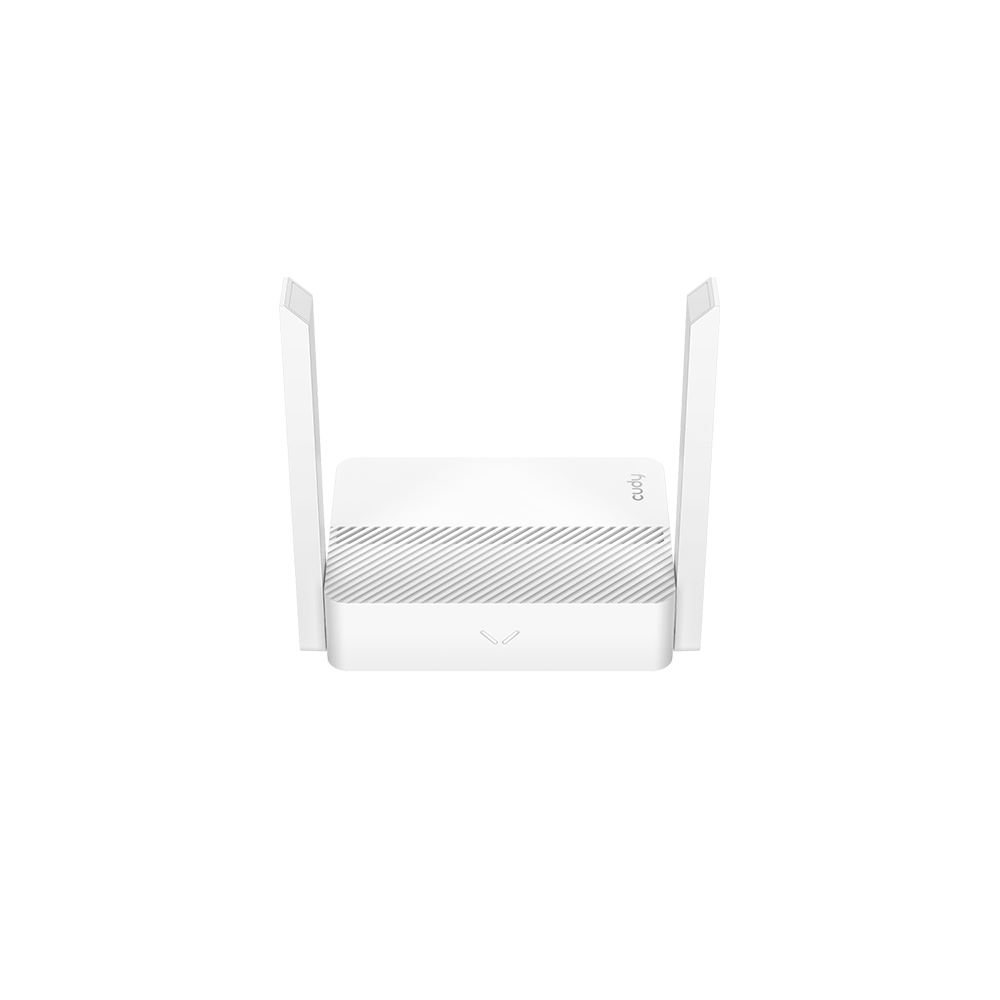

300 Mbps Multi-Mode Wi-Fi Router (WR300)


A WiFi router with four Fast Ethernet ports allows smooth video playback and a maximum of 100 Mbps internet access, featuring Cudy Mesh and local app control.

  •  300 Mbps Wi-Fi Speed
  •  4× Fast Ethernet Ports
  •  VPN Client of WireGuard, PPTP, L2TP
  •  Covers 90 m² (950 ft²)
  •  Router/AP/RE/WISP and Mesh Modes
  • DATASHEET

14.29

Model Version WR300 1.0
CPU CPU Details 580 MHz Single-Core, MIPS24KEC
Memory/Stroage Flash/ROM 8 MB (64 Mbit ) NOR
DDR/RAM 64 MB (512 Mbit) DDR3
Wireless 2.4 GHz Wi-Fi Speed 300 Mbps
2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO)
Wi-Fi Antennas 2× Fixed
Range Performance Max: 100 m (328 ft)
Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
Wall Performance Two wooden walls with thickness < 3.8 cm (1.5”)
One concrete wall with thickness < 10 cm (4”)
Wi-Fi Transmission Power
  • CE: <20 dBm (2.4 GHz)
  • FCC: <30 dBm (2.4GHz)
Interfaces 10/100 Mbps RJ45 Ports 4
Ethernet Notes 1× WAN port, the rest are LAN ports
LED System
Physical Buttons
  • WPS Button
  • Reset Button
Power Input DC Jack
Power Power Methods DC
DC 5V 1A
Power Adapter Input: 100 ~ 240 V, 50/60 Hz AC
Output: 5V 1A DC
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Mechanical Installation Desktop
Dimension 118×80×27.5 mm
4.65×3.15×1.08 inches
Product Weight EU: 120 g (4.23 oz.)
Package Content
  • Main Product
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
