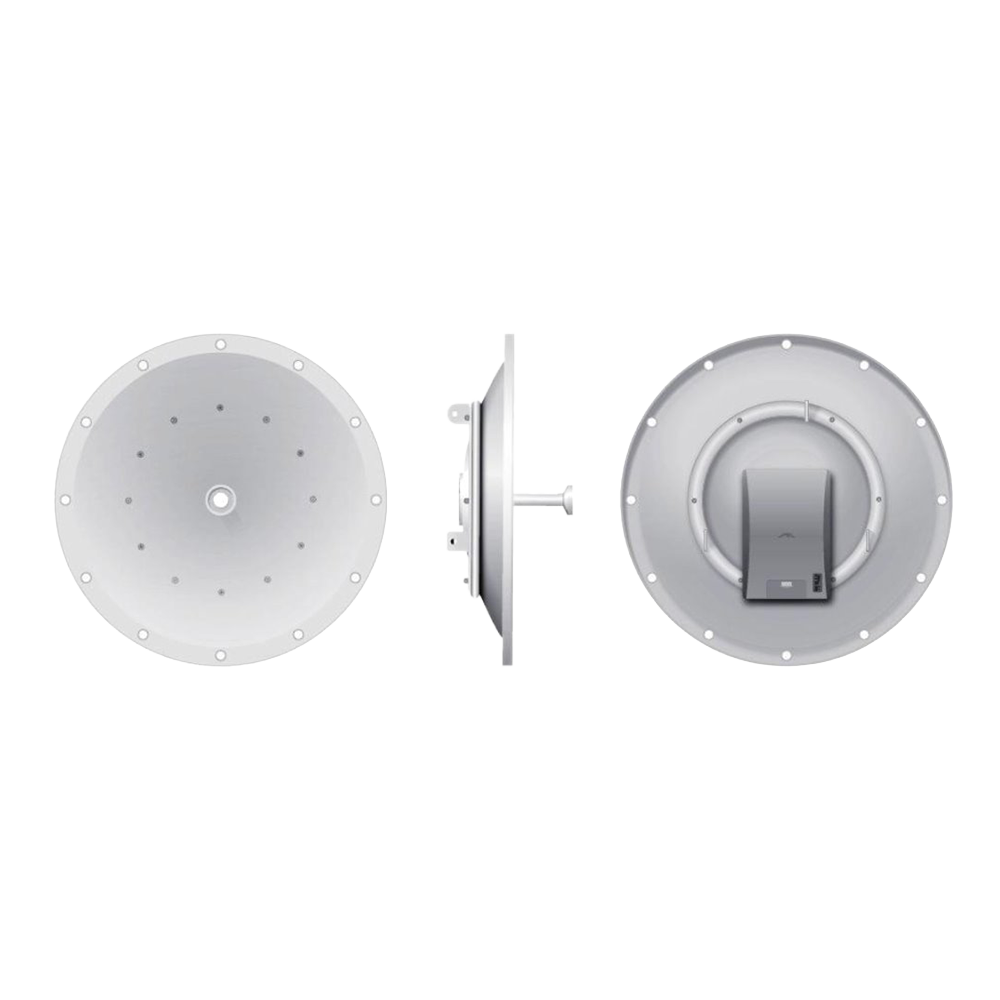

PowerBridge M10 is a rugged, hi-power, 2×2 MIMO radio with enhanced receiver performance using the super-high 10 GHz radio frequency. It features incredible range performance (20 km) and breakthrough speed (150 Mbps real TCP/IP). The PowerBridge M10 radio pairs seamlessly with the included Carrier Class PowerBridge M10 dish antenna, to create powerful PtP bridging applications.
Specifications:
| System Information | |
| Processor Specs | Atheros MIPS 24KC, 400 MHz |
| Memory Information | 64MB SDRAM, 8MB Flash |
| Networking Interface | (1) 10/100 Ethernet Port |
| Regulatory/Compliance Information | |
| Wireless Approvals | CE |
| RoHS Compliance | Yes |
| Physical / Electrical / Environmental | |
| Enclosure Size | 170 x 250 x 53 mm (without the feed)
170 x 250 x 272 mm (with the feed) |
| Weight | 1.15 kg (without the feed)
1.2 kg (with the feed) |
| Enclosure Characteristics | Die Cast Aluminum |
| Mounting Kit | Pole Mounting Kit included |
| Max. Power Consumption | 8 Watts |
| Power Supply | 24V, 1A PoE Supply included |
| Power Method | Passive Power over Ethernet
(pairs 4, 5 ; 7, 8 return) |
| Operating Temperature | -40 to 80° C |
| Operating Humidity | 5 to 95% Condensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Antenna Characteristics | |
| PBM10 | |
| Frequency Range | 10.322 GHz – 10.574 GHz |
| Gain | 33.0 – 34.4 dBi |
| HPOL Beamwidth | 3.0 – 3.7° over band |
| VPOL Beamwidth | 3.0 – 3.7° over band |
| F/B Ratio | 33 dB |
| Max VSWR | < 1.4:1 |
| Dimensions | 2 ft / 648 mm |
| Weight | 9.8 kg |
| Wind Survivability | 120 mph |
| Wind Loading | 113 lb @ 100 mph |
| Polarization | Dual Linear |
| Cross-pol Isolation | 35 dB min |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal pole mount,
PowerBridge M10 bracket |
